Cryo Controller

$1,150.00

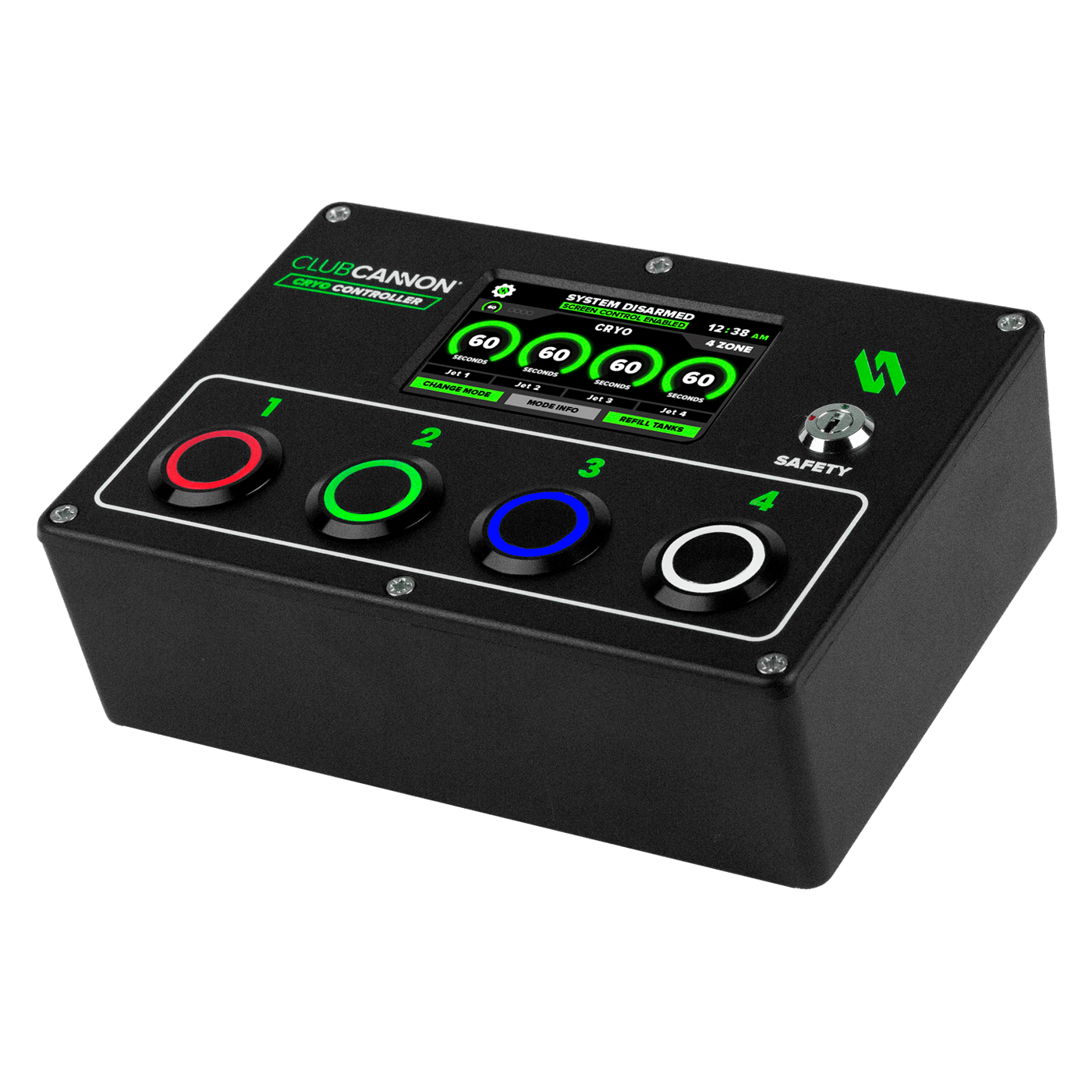

Club Cannon LCD DMX Cryo Controller is the first of its kind. This unit will allow you to track your CO2 use, taking the guess work out of tank changeovers.

2 in stock

Description

Cryo Controller

Are you after a simple solution to trigger your special FX system and or track your CO2 usage? Well look no further the Cryo Controller.
Club Cannon LCD DMX Cryo Controller is the first of its kind. This unit will allow you to track your CO2 use, taking the guess work out of tank changeovers.
This plug and play unit is designed and compatible with all CO2 Jet or special FX product with a DMX control. Just link all of your products together with DMX cables.
Then plug in to the controller and you are ready to go. There are several modes that is pre-programmed into the controller to suit the majority of FX products.
These modes are changeable on the fly, using the built in touch screen.



Includes:

  • LCD Cryo Controller.
  • 6FT Neutrik True1 Power Cord.
  • 2 Keys.
  • 5V DC output for on the go.

First of its kind

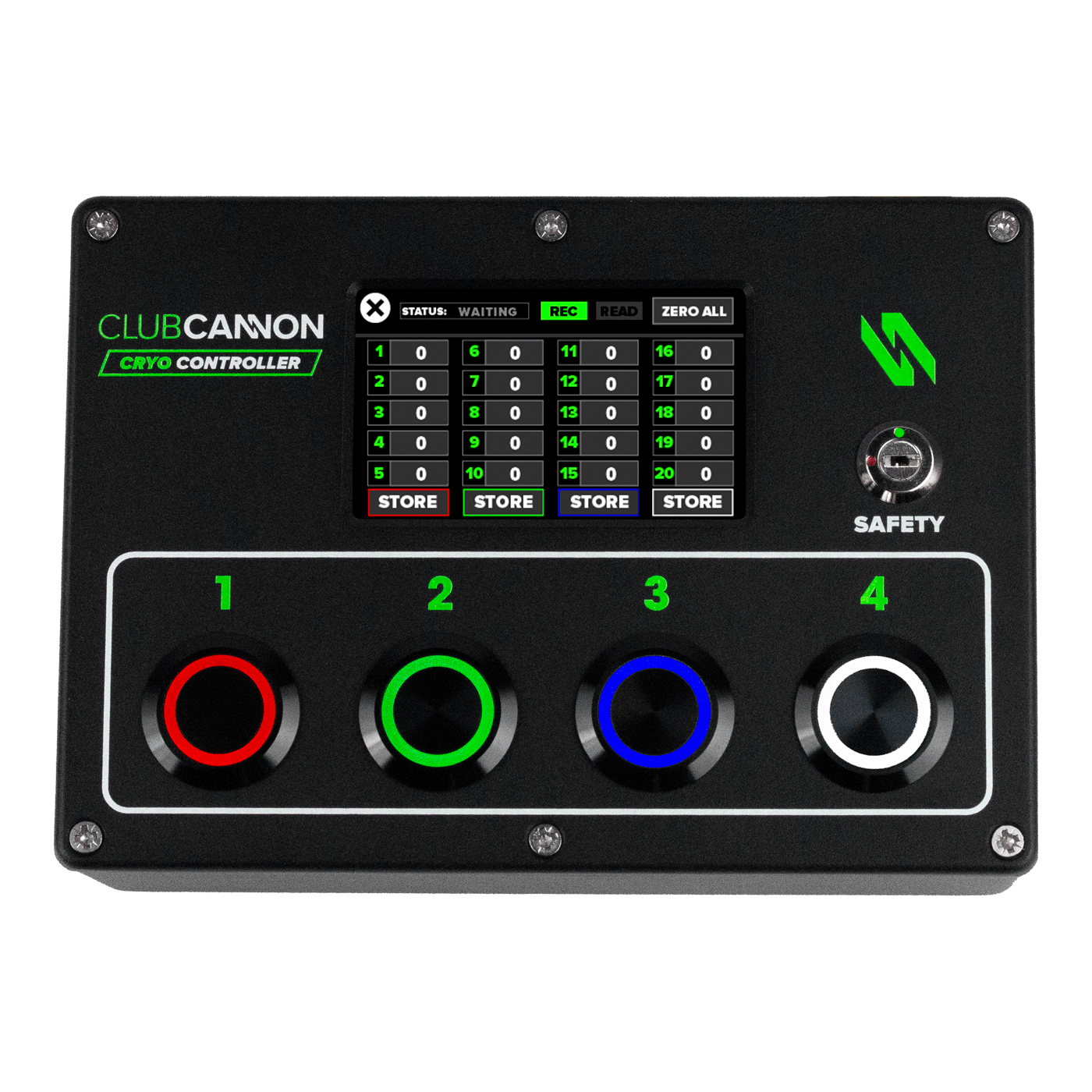

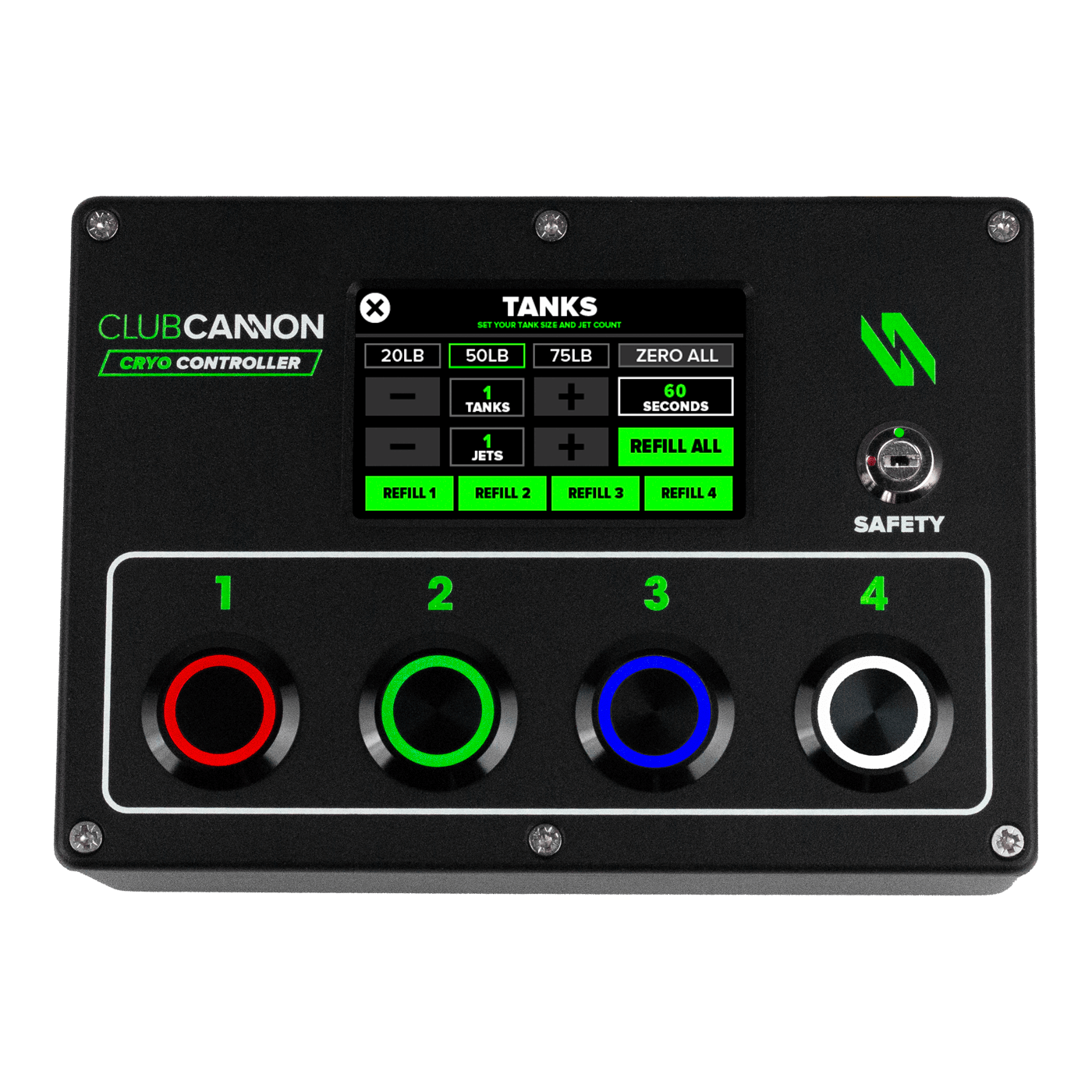

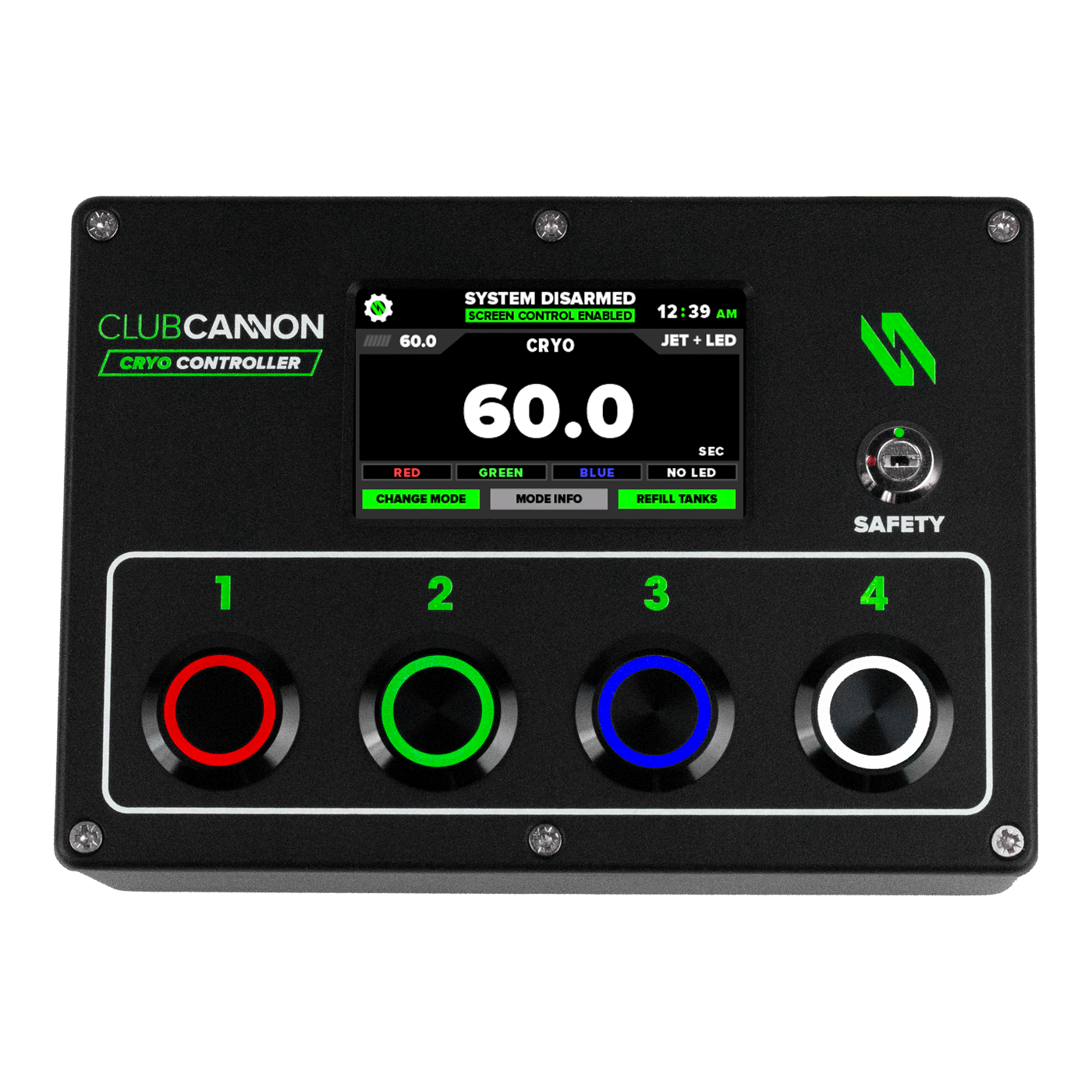

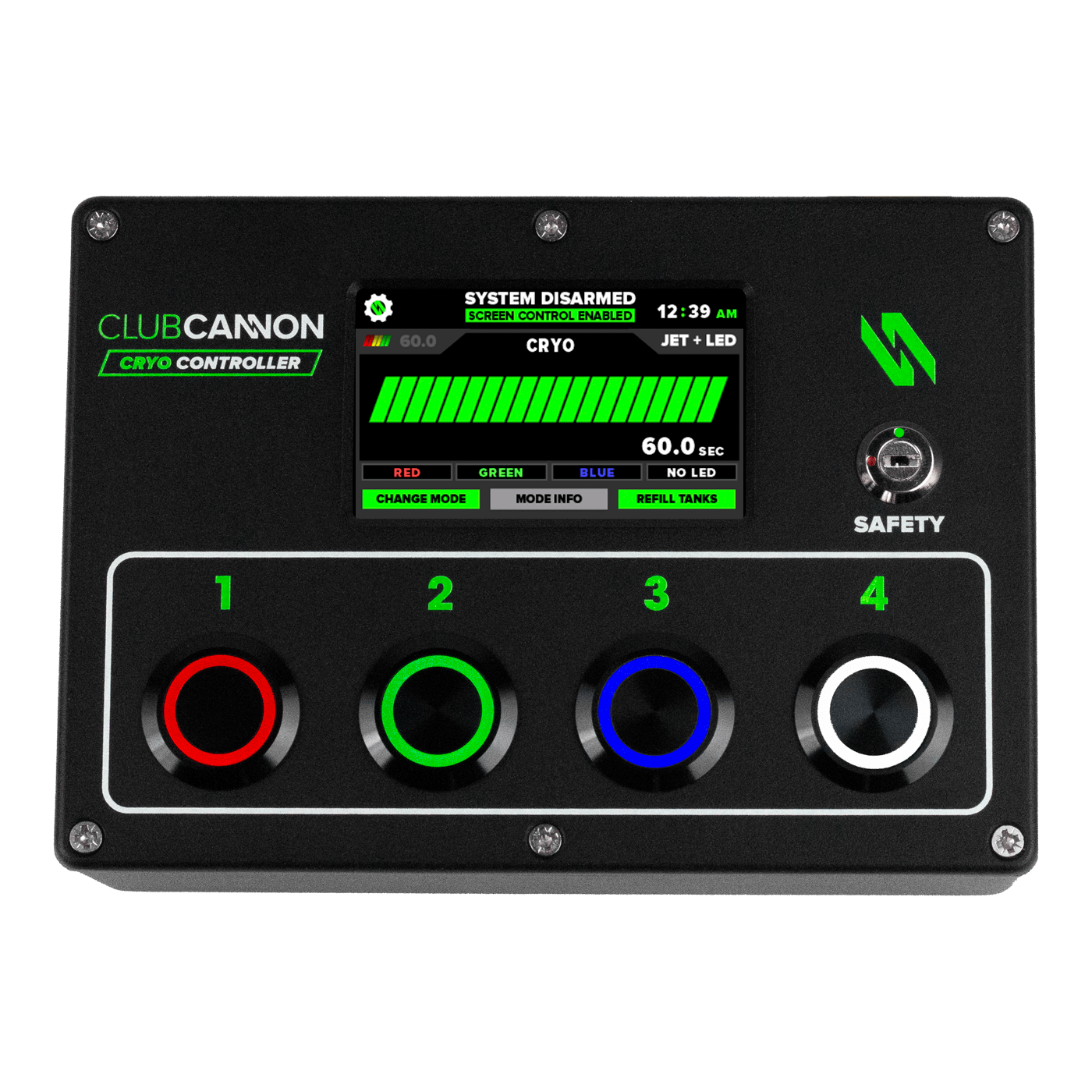

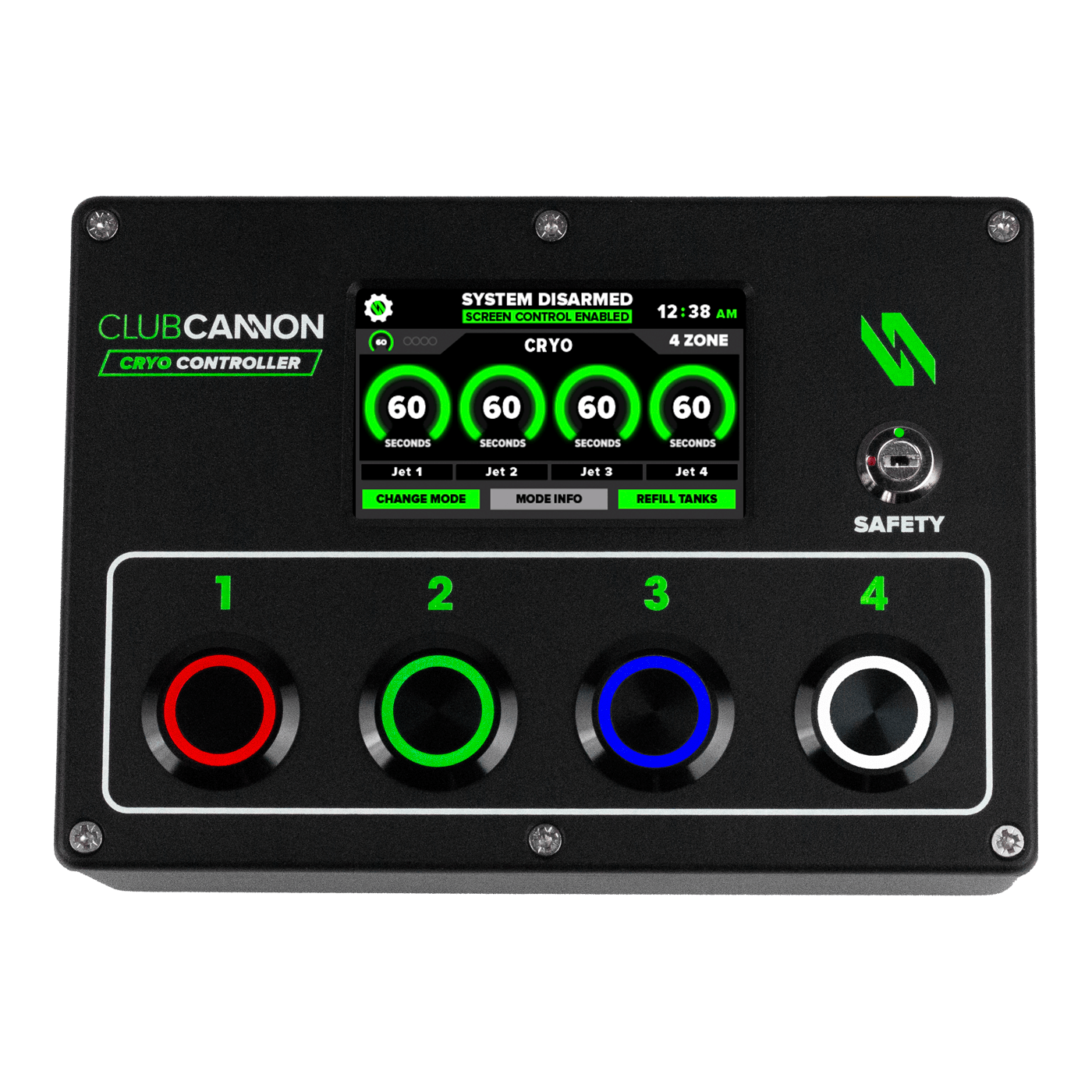

The Club Cannon LCD DMX Cryo Controller ships pre-programmed with several modes, each designed for specific CO2 Jet models and setups. Each mode is able to send the necessary DMX signal to your product, and track the CO2 usage of the DMX channel that controls the solenoid valve. To change modes, simply use the touch screen. To track CO2 usage, set the amount of jets & tanks in your rig, and have an accurate gauge showing how much liquid CO2 is remaining in your tanks. Click the tabs below to get more information on the pre-installed modes.

Features:

  • Black aluminum enclosure
  • LCD touch screen
  • CO2 usage tracking
  • Selectable tank size (20lb, 50lb, 75lb)
  • UV fluorescent silk screen
  • 4 LED ring illuminated buttons
  • Key lock switch
  • 3 pin or 5 pin DMX output
  • Neutrik True1 power inlet
  • Color mixing capability (LED modes)
  • Slim profile
  • 100v-240v operation
  • Made in the USA!

Notes:

  • When power off the controller will store tank levels . If you use the same tanks for multiple events, this allows for seamless operation.
  • The touch screen input is disabled when the key is in the ON position.
  • When the key is in the on position the screen will always jump directly to your tank monitor screen.
  • Keys required to control and engage output.
  • Tank values will only be reset when the key is in the OFF position.

How to Video

More CLUBCANNON items found here



Additional information

Weight 2 kg
Dimensions 30 × 20 × 15 cm
